Testing Wiring Blocks/IDCs - DSP, DTX & OMNIScanner - Legacy Information

*Please Note*

The following matrix for Testing Wiring Blocks/IDCs is considered legacy information only as the DSP-PMXXX personality modules and the DSX-PLA001 link adapter that accepted personality modules are no longer available to order.

We have experienced manufacturers suggesting the use of hybrid cables to test IDC connections, and these would be sourced from the IDC block manufacturer.

Please review this link for the Related Article:

Testing IDC (110) Block Connections with DSX CableAnalyzer

Always consult with the manufacturer of the connecting hardware to ensure that you certify the installation in agreement with their warranty requirements.

É fundamental que você saiba o código de fiação da instalação que você deseja testar. Ao contrário dos cabos de teste RJ45, os módulos IDC são diferenciados por um código de cores.
If you are testing Category 5e IDC modules, DSP-PM10A or DSP-PM10B would normally be used. (Except ADC/KRONE)

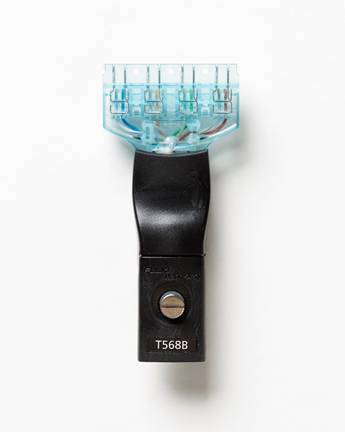

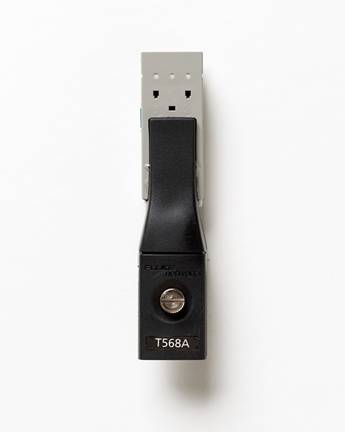

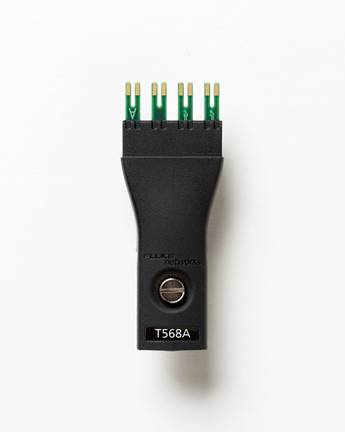

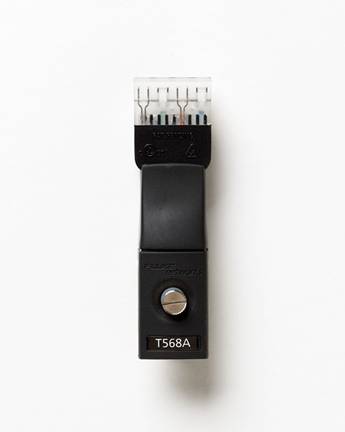

If you are testing Category 6 IDC modules, please review the table below (Click on the Manufacturer for a photo).
DTX-PLA002 users will need to purchase the DTX-PLA001 in order to use these modules.

Category 6, 6A /Class E, E_A
IDC Permanent Link Personality Modules

Manufacturer
Wiring Code
PM Module

SYSTIMAX® 110 (Avaya/Lucent)
    T568A
DSP-PM10A

    T568B
DSP-PM10B

Gerard Industries CP GigaPro
    T568A
DSP-PM11A

    T568B
DSP-PM11B

Belden (NORDX) GiGAbix     T568A DSP-PM11A

    T568B DSP-PM11B

Panduit GIGA-PUNCH     T568B DSP-PM12B

Siemon S210     T568A DSP-PM13A

    T568B DSP-PM13B

Hubbell     T568A DSP-PM13A

    T568B DSP-PM13B

ADC/Krone Ultim8     T568A DSP-PM14A

    T568B DSP-PM14B

ADC/Krone Highband     T568A DSP-PM15A

    T568B DSP-PM15B

Leviton/HellermannTyton     T568A DSP-PM16A

    T568B DSP-PM16B

Tyco/AMP 610 XC     T568A DSP-PM17A

    T568B DSP-PM17B

SYSTIMAX® VisiPatch® 360     T568A DSP-PM19A

    T568B DSP-PM19B
